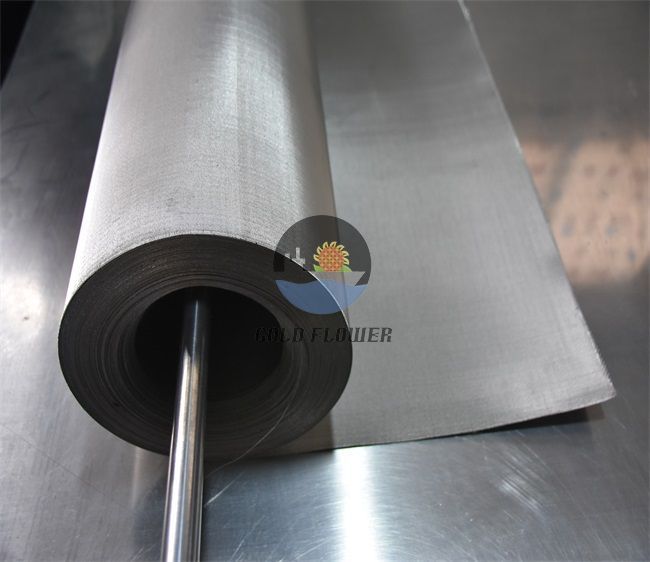

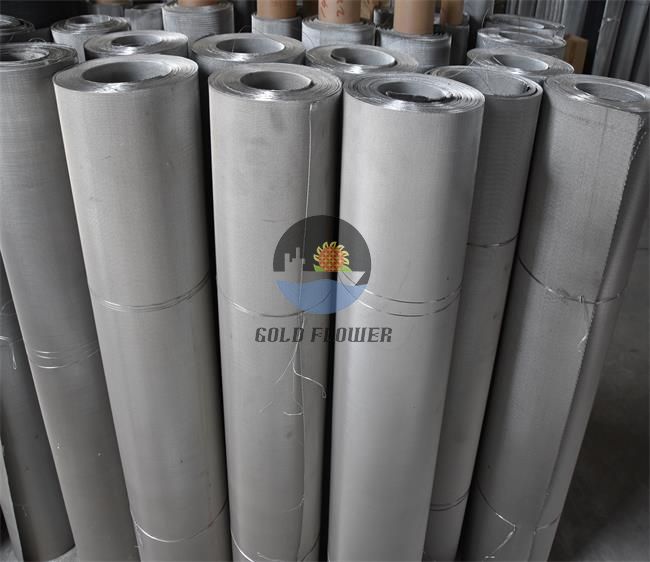

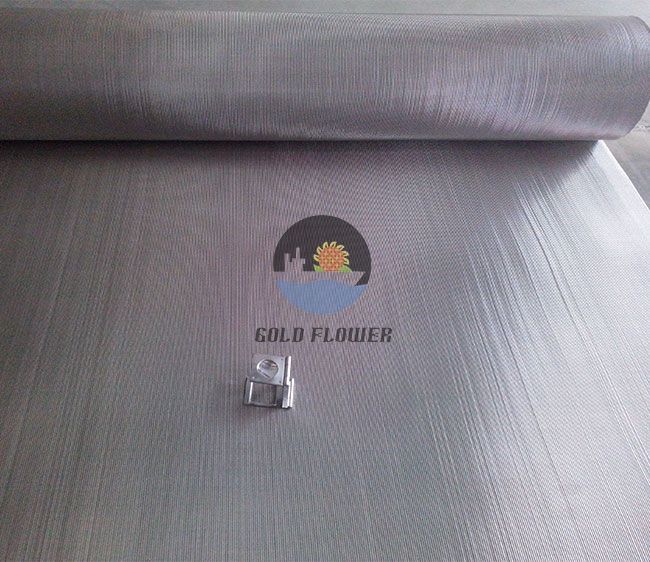

Stainless steel mesh for petroleum

Specifications:

Stainless steel mesh for petroleum.

Material: Aisi321, 302, 304, 304L, 316 and 316L stainless steel wire, black wire, Al5Cr23, Ni80Cr20, Ni60Cr15 and etc.

Weave: plain dutch, twilled dutch, reverse, five heddle weave.

Characteristics: acid resisting, alkali resisting, heat resisting and wear resisting.

Application: used for industries of mining, oil, chemical, food, phamaceutical, machine making, scientific research, aviation, etc.


Stainless steel mesh for petroleum is one of our best products,it is exported to Russia,Ukraine,Italy,France and other countries in the world.

It is Widely used in Neutral chloride environment,oil refining industry,petrochemical and chemical industry,chemical industry transportation pipeline,oil and gas industry,pulp and paper industry,chemical fertilizer industry,urea industry,phosphate fertilizer industry,seawater environment,energy and environment protection industry,light industry and food industry,food and pharmaceutical industry equipment,high strength structure.

Plain weave:

Each warp wire and each weft wire passes over and under the next adjacent wire.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

Twill dutch weave

It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.

Twill dutch weave is capable of supporting greater loads than the dutch weave. It has finer openings than the twilled weave. It is used for filtering heavy materials.

Reverse dutch weave woven wire cloth

Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.



Woven wire mesh with various materials and weaving types has a wide range of applications, which the most common is filtration. Detail applications are in the below.

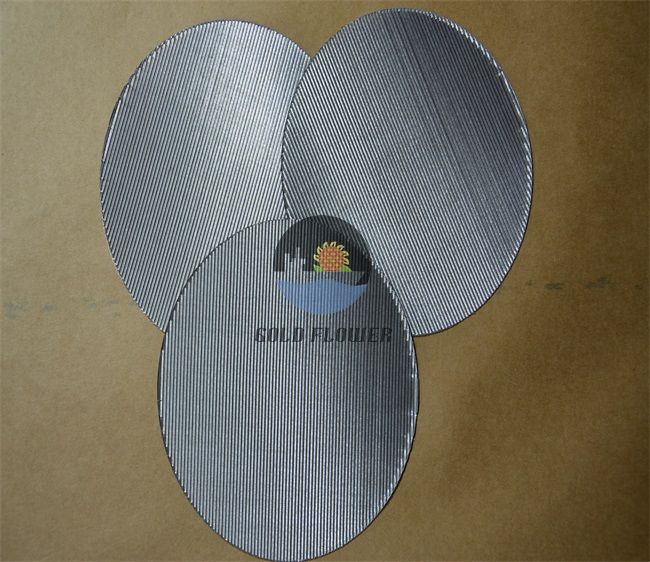

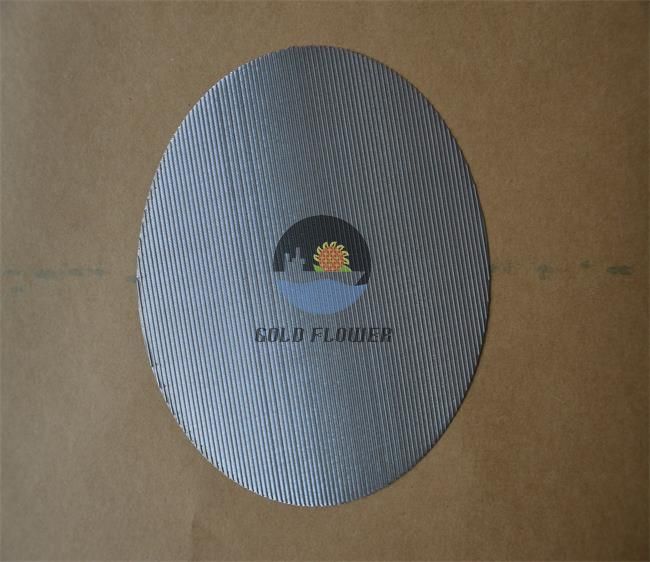

· Industrial filtration. Industrial filtration need accurate and effective filtration. We can supply the filter discs and sintered filter mesh for high efficiency and fine filtering.

· Food filtration. has various types for food filtering and sieving, including water, oil and powder.

· Hops and hot breaks filtration. The bazooka screen is mainly used in the kettles, tuns and other containers to filter hops and hot breaks.


Plain Dutch Woven Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
mm
Weight
kgs/m2
Filtering valueμm
7 x 500.70 x 0.544.50315
8 x 600.55 x 0.453.64280
12 x 640.58 x 0.423.80180
12 x 900.45x 0.302.60160
14 x 880.50 x 0.332.81150
14 x 1000.40 x 0.282.52140
18 x 1000.40 x 0.282.61130
24 x 1100.35 x 0.252.45115
25 x 1400.30 x 0.201.96100
30 x 1500.23 x 0.181.6195
30 x 1600.23 x 0.181.6990
40 x 2000.18 x 0.141.3075
45 x 2200.18 x 0.1251.2256
50 x 2500.14 x 0.111.0060
50 x 2800.14 x 0.100.8445
60 x 3000.14 x 0.090.8040
65 x 3200.12 x 0.0850.7536
70 x 3500.11 x 0.080.7034
70 x 4000.11 x 0.070.6832
80 x 4000.12 x 0.070.5535


 Twill Dutch Woven Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
mm
Weight
kgs/m2
Filtering valueμm
μm

20 x 2500.28 x 0.206.5587
30 x 2500.25 x 0.202.9670
80 x 7000.10 x 0.081.3225
80 x 7800.11 x 0.071.1927
100 x 7800.10 x 0.071.2025
100 x 9000.10 x 0.601.0622
100 x 7800.10 x 0.701.2124
120 x 4000.10 x 0.060.6640
120 x 6000.10 x 0.060.8430
120 x 11000.08 x 0.050.8818
165 x 8000.07 x 0.050.7015
165 x 12000.07 x 0.040.6819
165 x 14000.07 x 0.040.7614
200 x 6000.06 x 0.0450.4820
200 x 9000.05 x 0.0350.4023
200 x 14000.07 x 0.040.8010
250 x 20000.04 x 0.0270.468
280 x 22000.035 x 0.0250.426.3
320 x 23000.033 x 0.0240.415
325 x 23000.035 x 0.0250.455
400 x 28000.025 x 0.0200.363
500 x 35000.025 x 0.0150.305



Reverse Dutch Weave Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
Warp x Weft
mm
Wire Diameter
Warp x Weft
inch
Absolute Filter rating
μm

63 x 180.40 x 0.600.0157 x 0.0236220
107 x 200.24 x 0.600.0094 x 0.0236210
130 x 350.20 x 0.400.0079 x 0.015780
132 x 160.24 x 0.600.0094 x 0.0236200
132 x 320.20 x 0.400.0079 x 0.0157105
140 x 400.19 x 0.380.0075 x 0.015100
170 x 400.20 x 0.450.0079 x 0.0177130
180 x 1200.088 x 0.100.0035 x 0.00475
200 x 1200.08x 0.100.0031 x 0.00470
175 x 400.15 x 0.380.0079 x 0.015770
175 x 500.15 x 0.300.0059 x 0.01260
290 x 750.09 x 0.200.0035 x 0.007955
600 x 1000.04x 0.140.0157 x 0.005525
615 x 1300.04 x 0.130.0157 x 0.005122
615 x 1020.04x 0.160.0157 x 0.006342
625 x 1330.04 x 0.130.0157 x 0.005117
720 x 1500.036 x 0.100.0014 x 0.003917
850 x 1550.03 x 0.100.0012 x 0.00410
Five-heddle Dutch Weave Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
mm
Aperture(mm)Warp x WeftOpen AreaWeightkgs/m2
108 x 590.1600.075 x 0.271201.07
110 x 600.1600.071 x 0.263191.09
38 x 380.1500.518 x 0.518600.43


  • Plain dutch weave
  • Twilled dutch weave
  • Reverse dutch waeve 1
  • Reverse dutch weave 2
  • Five-heddle weave
Material Production
01 /

Material Production

Diameter Inspect
02 /

Diameter Inspect

Tension Test
03 /

Tension Test

Material Check
04 /

Material Check

Material Check
05 /

Material Check

06 /

Weaving

Weaving
07 /

Mesh Inspect

Mesh Inspect
08 /

Hole Size Test

Hole Size Test
09 /

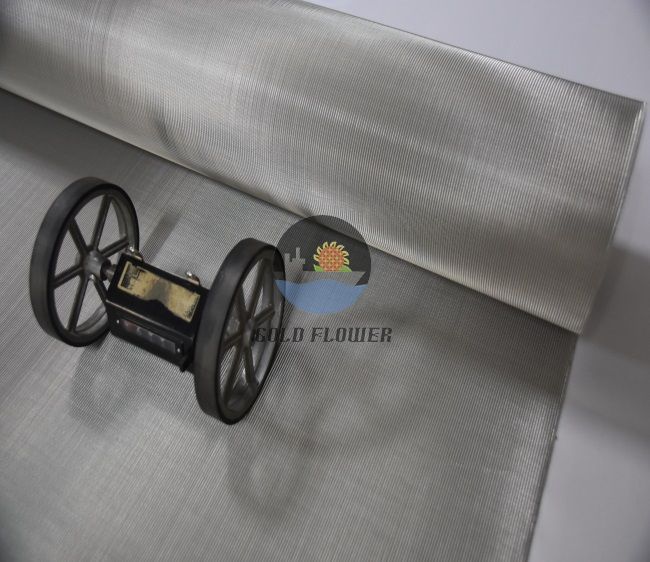

Length and Width Inspect

Length and Width Inspect
10 /

Trimming Edge

Trimming Edge
  • Intension test
  • Diameter Inspect
  • Thickness Inspect
  • Role size Inspect
  • Mesh Test
  • Length and Width Check
  • Trimming Edge
  • Mesh Inspect

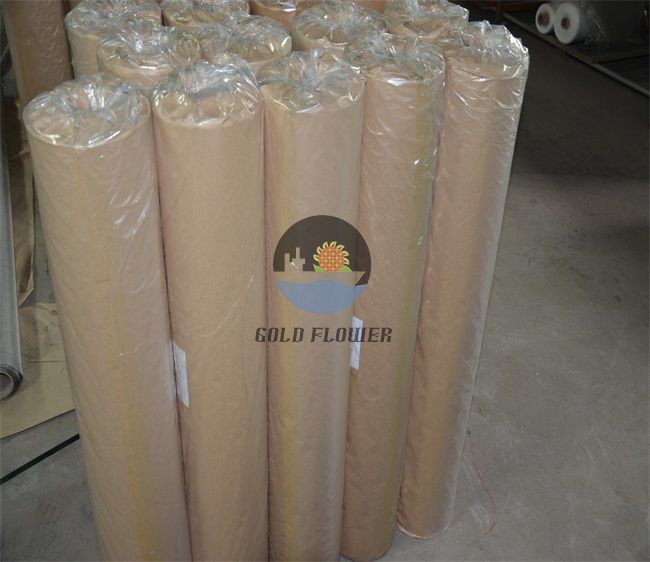

With the most perfect way to protect your cargo security
