Gabion Wire Mesh

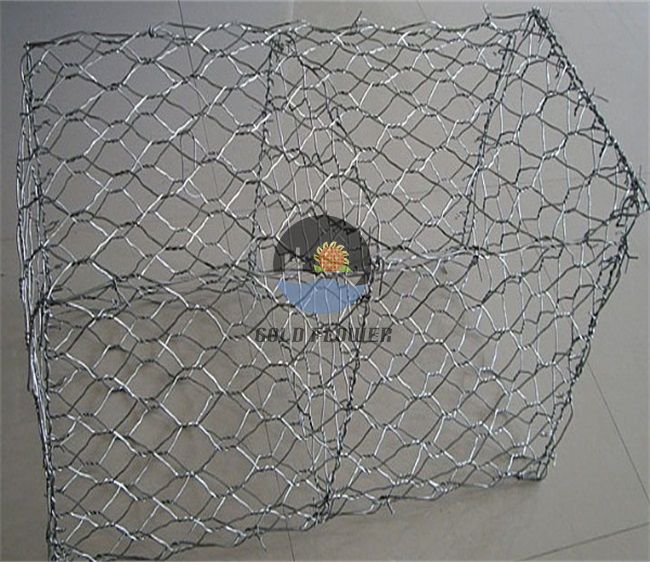

Gabion box is one of the products produced by Goldflower Wire Mesh Factory. Stone cage net are mechanically woven from low-carbon steel wires with high corrosion resistance, high strength, ductility or PVC-coated steel wires. The box-shaped structure made of this net is called a gabion cage. According to ASTM and EN standards, the diameter of the low-carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the gabion wire is not less than 38kg/m2, the metal coating weight is generally higher than 245g/m2, and the edge diameter of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part must not be less than 50mm to ensure that the metal coating and PVC coating of the twisted part are not damaged.

Uses of Gabion Boxes

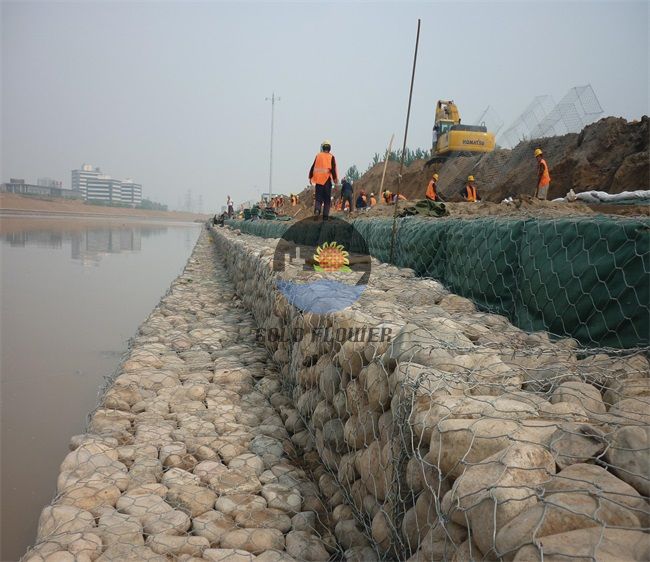

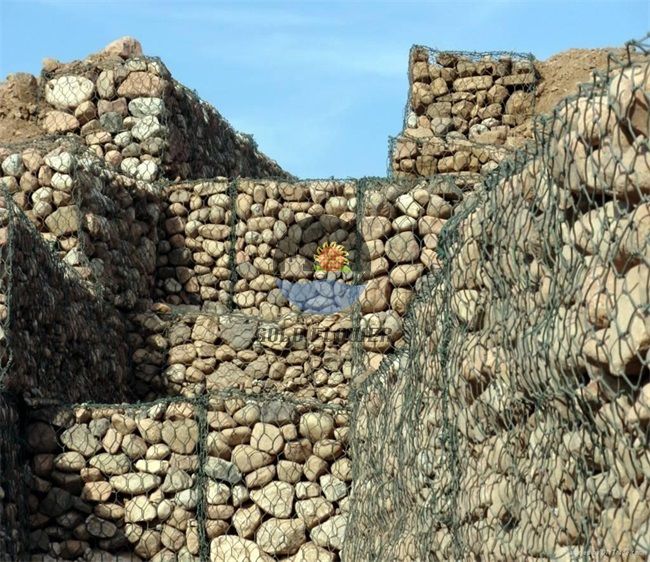

Stone cage net  can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, and It is used for the anti-scouring protection of rivers, dams and seawalls, and net cages for the closure of reservoirs and rivers. The most serious disaster of rivers is the destruction of river banks by water, which causes flooding, which leads to massive losses of lives and properties and a large amount of soil erosion. Therefore, when dealing with the above-mentioned problems, the application of this ecological grid structure has become one of the good solutions, which can protect the river bed and bank for a long time.

Project case: China South-to-North Water Diversion Project, Yellow River Improvement Project, Mudanjiang River Improvement Project, etc.
