Stainless Steel Dutch Weave Wire Mesh

Product: Dutch Weave Wire Mesh (Stainless Steel)

Material: Aisi321, 302, 304, 304L, 316 and 316L stainless steel wire, black wire, Al5Cr23, Ni80Cr20, Ni60Cr15 and etc.

Weave: plain dutch, twilled dutch, reverse, five heddle weave.

Characteristics: acid resisting, alkali resisting, heat resisting and wear resisting.

Application: used for industries of mining, oil, chemical, food, phamaceutical, machine making, scientific research, aviation, Dutch Weave Screen,etc.





down load to pdf

Details

Tags

Dutch Weave Wire Mesh is one of our best products, it is exported to Russia, Ukraine, Italy, France and other countries in the world.

Dutch Weave Wire Mesh(Dutch Weave Screen) is mainly made of stainless steel. We also supply stainless steel wire mesh.

GOLDFLOWER dutch woven wire mesh is widely used in Neutral chloride environment, oil refining industry, petrochemical and chemical industry, chemical industry transportation pipeline, oil and gas industry, pulp and paper industry, chemical fertilizer industry, urea industry, phosphate fertilizer industry, seawater environment, energy and environment protection industry, light industry and food industry, food and pharmaceutical industry equipment, high strength structure.

Dutch Weave Wire Mesh(Dutch Weave Screen) is manufactured from stainless steel wire. Different from plain weave woven wire mesh and twill woven wire mesh, the dutch weave woven wire mesh has different diameter in the weft and warp directions. Commonly the warp wire is coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is finer wire, which can ensure the excellent filtering performance. This unique structure with greater strength and finer openings is primarily used as a filter cloth.



Advantages Of the Dutch Weave Wire Mesh(Dutch Weave Screen)

  • Greater mechanical stability.

  • Finer opening for better filtration efficiency and quality.

  • Coarser wire for higher tensile strength.



Types of Dutch Weave Wire Mesh(Dutch Weave Screen)

Plain weave

Introduction: Each warp wire and each weft wire passes over and under the next adjacent wire, providing high filtration levels and high pressure load resistance.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth. Plain dutch weave has a fineness ranging from 40 microns to 300 microns.

Uses: Plain Dutch woven wire cloth is used for solid separation and liquid filtration.

Features: Plain Dutch woven wire cloth has higher mechanical stability. Finer openings improve filtration efficiency and quality. Thicker wire has higher tensile strength.

Plain weave

Twill dutch weave

Introduction: It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved. Very low absolute fineness grade of twill Dutch woven fabric (down to 5-6 microns). Heat resistance, acid and alkali resistance, corrosion resistance and rust resistance.

Uses: Twill dutch weave woven wire mesh is used for filtering heavier materials.

Features: Twill dutch weave is capable of supporting greater loads than the dutch weave. It has finer openings than the twilled weave. It is used for filtering heavy materials.

Twill dutch weave

Reverse dutch weave woven wire cloth

Introduction: Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.

Uses: Reverse Dutch weave woven wire cloth, which is mainly used for basic filtration in pharmaceutical, food, medical and chemical industries. We offer a wide range of filters, contact us now for more information or a detailed quote.

Dutch Weave Mesh of Application

Woven wire mesh with various materials and weaving types has a wide range of applications, which the most common is filtration. Detail applications are in the below.

· Industrial filtration. Industrial filtration need accurate and effective filtration. We can supply the filter discs and sintered filter mesh for high efficiency and fine filtering.

· Food filtration. has various types for food filtering and sieving, including water, oil and powder.

· Hops and hot breaks filtration. The bazooka screen is mainly used in the kettles, tuns and other containers to filter hops and hot breaks.



Plain Dutch Woven Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
mm
Weight
kgs/m2
Filtering valueμm
7 x 50 0.70 x 0.54 4.50 315
8 x 60 0.55 x 0.45 3.64 280
12 x 64 0.58 x 0.42 3.80 180
12 x 90 0.45x 0.30 2.60 160
14 x 88 0.50 x 0.33 2.81 150
14 x 100 0.40 x 0.28 2.52 140
18 x 100 0.40 x 0.28 2.61 130
24 x 110 0.35 x 0.25 2.45 115
25 x 140 0.30 x 0.20 1.96 100
30 x 150 0.23 x 0.18 1.61 95
30 x 160 0.23 x 0.18 1.69 90
40 x 200 0.18 x 0.14 1.30 75
45 x 220 0.18 x 0.125 1.22 56
50 x 250 0.14 x 0.11 1.00 60
50 x 280 0.14 x 0.10 0.84 45
60 x 300 0.14 x 0.09 0.80 40
65 x 320 0.12 x 0.085 0.75 36
70 x 350 0.11 x 0.08 0.70 34
70 x 400 0.11 x 0.07 0.68 32
80 x 400 0.12 x 0.07 0.55 35



 Twill Dutch Woven Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
mm
Weight
kgs/m2
Filtering valueμm
μm

20 x 250 0.28 x 0.20 6.55 87
30 x 250 0.25 x 0.20 2.96 70
80 x 700 0.10 x 0.08 1.32 25
80 x 780 0.11 x 0.07 1.19 27
100 x 780 0.10 x 0.07 1.20 25
100 x 900 0.10 x 0.60 1.06 22
100 x 780 0.10 x 0.70 1.21 24
120 x 400 0.10 x 0.06 0.66 40
120 x 600 0.10 x 0.06 0.84 30
120 x 1100 0.08 x 0.05 0.88 18
165 x 800 0.07 x 0.05 0.70 15
165 x 1200 0.07 x 0.04 0.68 19
165 x 1400 0.07 x 0.04 0.76 14
200 x 600 0.06 x 0.045 0.48 20
200 x 900 0.05 x 0.035 0.40 23
200 x 1400 0.07 x 0.04 0.80 10
250 x 2000 0.04 x 0.027 0.46 8
280 x 2200 0.035 x 0.025 0.42 6.3
320 x 2300 0.033 x 0.024 0.41 5
325 x 2300 0.035 x 0.025 0.45 5
400 x 2800 0.025 x 0.020 0.36 3
500 x 3500 0.025 x 0.015 0.30 5





Reverse Dutch Weave Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
Warp x Weft
mm
Wire Diameter
Warp x Weft
inch
Absolute Filter rating
μm

63 x 18 0.40 x 0.60 0.0157 x 0.0236 220
107 x 20 0.24 x 0.60 0.0094 x 0.0236 210
130 x 35 0.20 x 0.40 0.0079 x 0.0157 80
132 x 16 0.24 x 0.60 0.0094 x 0.0236 200
132 x 32 0.20 x 0.40 0.0079 x 0.0157 105
140 x 40 0.19 x 0.38 0.0075 x 0.015 100
170 x 40 0.20 x 0.45 0.0079 x 0.0177 130
180 x 120 0.088 x 0.10 0.0035 x 0.004 75
200 x 120 0.08x 0.10 0.0031 x 0.004 70
175 x 40 0.15 x 0.38 0.0079 x 0.0157 70
175 x 50 0.15 x 0.30 0.0059 x 0.012 60
290 x 75 0.09 x 0.20 0.0035 x 0.0079 55
600 x 100 0.04x 0.14 0.0157 x 0.0055 25
615 x 130 0.04 x 0.13 0.0157 x 0.0051 22
615 x 102 0.04x 0.16 0.0157 x 0.0063 42
625 x 133 0.04 x 0.13 0.0157 x 0.0051 17
720 x 150 0.036 x 0.10 0.0014 x 0.0039 17
850 x 155 0.03 x 0.10 0.0012 x 0.004 10
Five-heddle Dutch Weave Wire Cloth
Mesh/Inch
Warp x Weft
Wire Diameter
mm
Aperture(mm)Warp x Weft Open Area Weightkgs/m2
108 x 59 0.160 0.075 x 0.271 20 1.07
110 x 60 0.160 0.071 x 0.263 19 1.09
38 x 38 0.150 0.518 x 0.518 60 0.43



Weave



  • Plain dutch weave

    Plain dutch weave

  • Twilled dutch weave

    Twilled dutch weave

  • Reverse dutch waeve 1

    Reverse dutch waeve 1

  • Reverse dutch weave 2

    Reverse dutch weave 2

  • Five-heddle weave

    Five-heddle weave

Production Process



  • Material Production

    Material Production

  • Diameter Inspect

    Diameter Inspect

  • Tension Test

    Tension Test

  • Material Check

    Material Check

  • Material Check

    Material Check

  • Trimming Edge

    Trimming Edge

  • Length and Width Inspect

    Length and Width Inspect

  • Hole Size Test

    Hole Size Test

  • Mesh Inspect

    Mesh Inspect

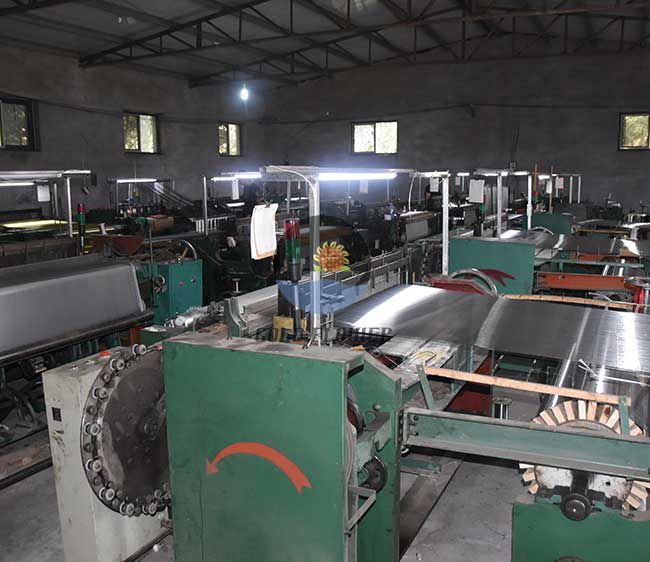

  • Weaving

    Weaving

Detection



  • Intension Test

    Intension Test

  • Diameter Inspect

    Diameter Inspect

  • Thickness Inspect

    Thickness Inspect

  • Role size Inspect

    Role size Inspect

  • Mesh Test

    Mesh Test

  • Length and Width Check

    Length and Width Check

  • Trimming Edge

    Trimming Edge

  • Mesh Inspect

    Mesh Inspect

Packaging & Shipping



With the most perfect way to protect your cargo security

  • 1 Cardboard Tube

    Cardboard Tube

  • 2 Thick Paper Board

    Thick Paper Board

  • 3 Thick Plastic Cloth

    Thick Plastic Cloth

  • 4 Perfect Wooden Case

    Perfect Wooden Case

  • 5 Thick Plastic Bubble Film

    Thick Plastic Bubble Film

  • 6 Excellent Cover

    Excellent Cover

  • 7 Steel Strap Fix

    Steel Strap Fix

  • 8 Package Check

    Package Check

  • 9 Container Transport

    Container Transport
