304 stainless steel wire mesh

Materials: Aisi304 stainless steel wire

Weaving: Plain, Twill, Dutch.

Features: Acid resistant, alkali resistant, heat resistant, corrosion resistant.

Uses: Used in mine, petroleum, chemical, food, medicine, machine making, etc.



    Goldflower wire mesh factory--one of the leading factories of wire mesh.We have more than 20 years of experience for production.

    304  Stainless steel wire mesh is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

   The weaving is determined according to our customers’ specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

Plain weave:

  Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave:

  The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.

Dutch Twilled Weaving:

  The wires of the weft and the warp intercross two above with a larger weft wire than the warp.
  Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.

  Stainless steel mesh is used in general industrial use applications, like heavy duty particle separation, water filtration and food processing. Such as:mining, quarrying, security, and so on.

used in instances where air flow is needed. Other of these can be used in scientific applications. Non-industrial users also find some of these specifications suitable for various decorative and artistic applications.

these specifications are reserved for high performance use in industries, like aerospace, science research and special technologies. available from stock in full 100 ft rolls. These rolls can be cut down to size.


No.Hole size, ммWire diameter, мм
040,400,20; 0,25
0450,450,20; 0,25
050,500,20; 0,25; 0,30
0550,550,22; 0,28
0630,630,25; 0,32
070,700,22; 0,28; 0,32
080,800,25; 0,32
090,900,22; 0,36
11,000,25; 0,32; 0,40
1,11,100,28; 0,36
1,21,200,32; 0,40
1,41,400,36; 0,45; 0,65
1,61,600,32; 0,40
1,81,800,45; 0,05; 0,70
22,000,40; 0,50; 0,60; 1,00; 1,20
2,52,500,40; 0,50; 0,60
2,82,800,45; 0,90
3,23,200,50; 0,80; 1,20
3,53,500,70; 0,90; 1,00
44,000,60; 1,00; 1,20
4,54,500,70; 0,90; 1,80
55,000,70;1,20; 1,60; 2,00
66,000,70; 1,20; 2,00
77,000,70; 1,20; 1,80
88,000,70; 1,20;
99,001,60; 2,00 1,00; 2,00;
1010,002,20
1212,001,00; 2,00; 1,00; 1,20;
1414,002,00; 1,00; 1,40; 2,00
1616,001,60; 2,50
1818,001,80; 2,50 1,60; 2,00;
2020,002,50



Material Production
01 /

Material Production

Diameter Inspect
02 /

Diameter Inspect

Tension Test
03 /

Tension Test

Material Check
04 /

Material Check

Material Check
05 /

Material Check

06 /

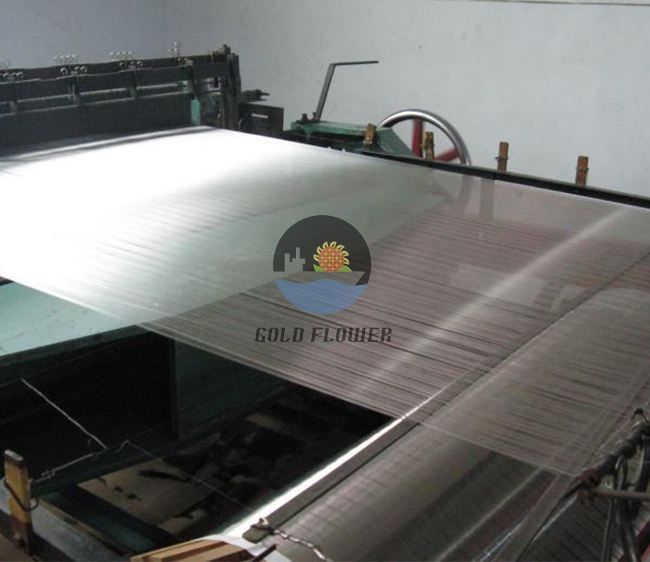

Weaving

Weaving
07 /

Mesh Inspect

Mesh Inspect
08 /

Hole Size Test

Hole Size Test
09 /

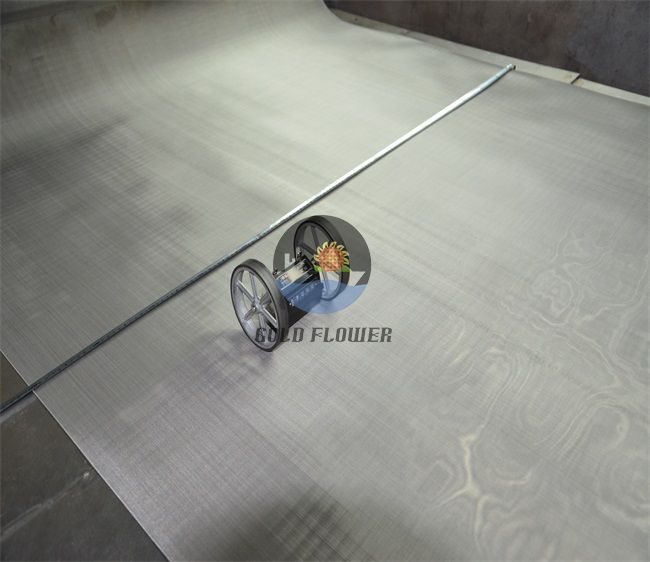

Length and Width Inspect

Length and Width Inspect
10 /

Trimming Edge

Trimming Edge
  • Intension test
  • Diameter Inspect
  • Thickness Inspect
  • Role size Inspect
  • Mesh Test
  • Length and Width Check
  • Trimming Edge
  • Mesh Inspect

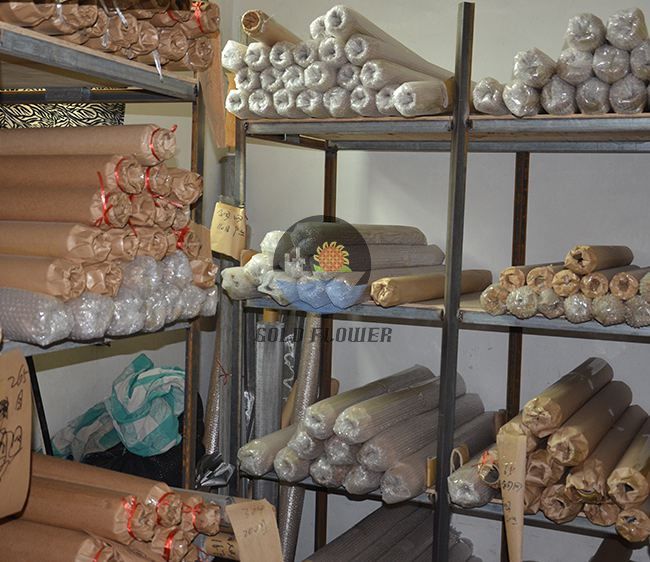

With the most perfect way to protect your cargo security

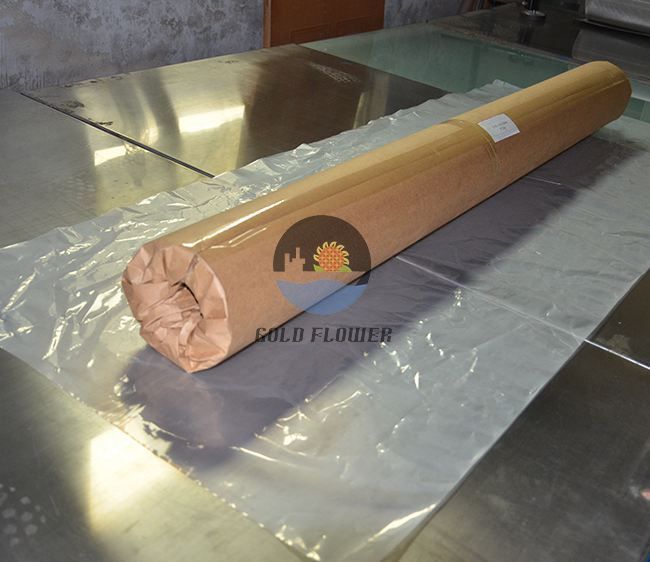

  • 001 cardboard tube
  • 002 thick paper board
  • 003 thick plastic cloth
  • 004 perfect wooden case
  • 005 thick plastic bubble film
  • 006 excellent cover
  • 007 steel strap fix
  • 008 package check
  • 009 container transport
