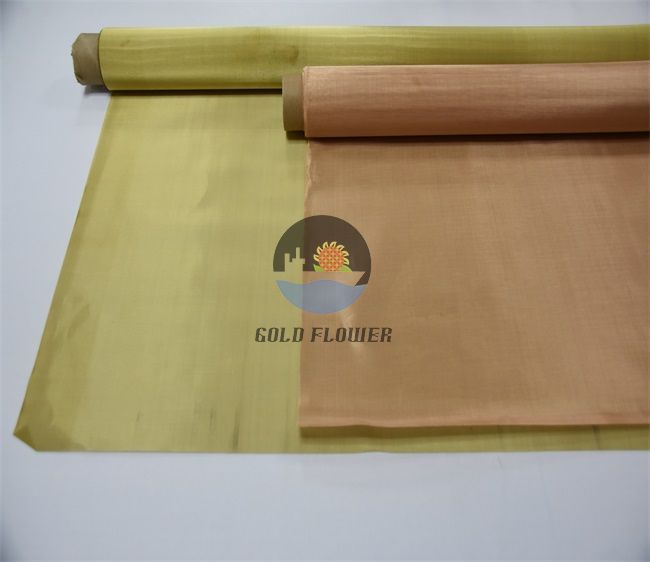

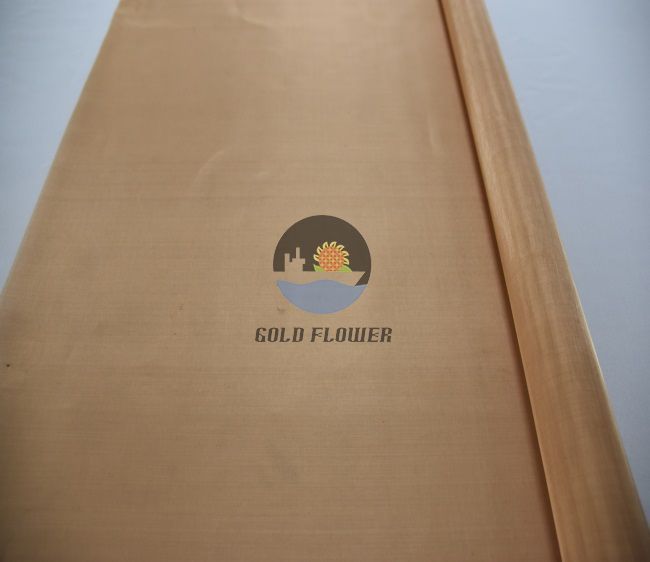

Brass mesh supplier China

Material: brass wire,copper wire.

Weave: plain dutch,twilled dutch,reverse ,five heddle weave.

Characteristics: acid resisting,alkali resisting,heat resisting and wear resisting.

Application: used for liquid ,industries of mining,oil, chemical, food, phamaceutical, machine making, scientific research,aviation,etc.


Features of Brass  mesh:has excellent abrasion resistance, corrosion-resisting, lower electric conductivity as compared with copper.

Features of Brass mesh: offers excellent electrical and thermal conductivity, it is non-magnetic, anti-sparking and is resistance to atmospheric corrosion, salt air and brine. Copper applications are limited due to its low tensile strength, poor resistance to abrasion and common acids.

Plain weave:

Each warp wire and each weft wire passes over and under the next adjacent wire.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

Twill dutch weave

It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.

Twill dutch weave is capable of supporting greater loads than the dutch weave. It has finer openings than the twilled weave. It is used for filtering heavy materials.

Reverse dutch weave woven wire cloth

Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.


Mesh/inchWire diameter/SWGWire diameter/mm
5250.508
6220.711
10250.508
12260.457
14270.417
16290.345
20300.315
22300.315
26310.295
28310.295
32330.254
34340.234
36340.234
38350.213
44370.173
50370.173
60370.173
90410.112
100420.102
120430.091
150460.061
160460.061
200470.051
300480.041
350490.033

  • Plain dutch weave
  • Twilled dutch weave
  • Reverse dutch waeve 1
  • Reverse dutch weave 2
  • Five-heddle weave

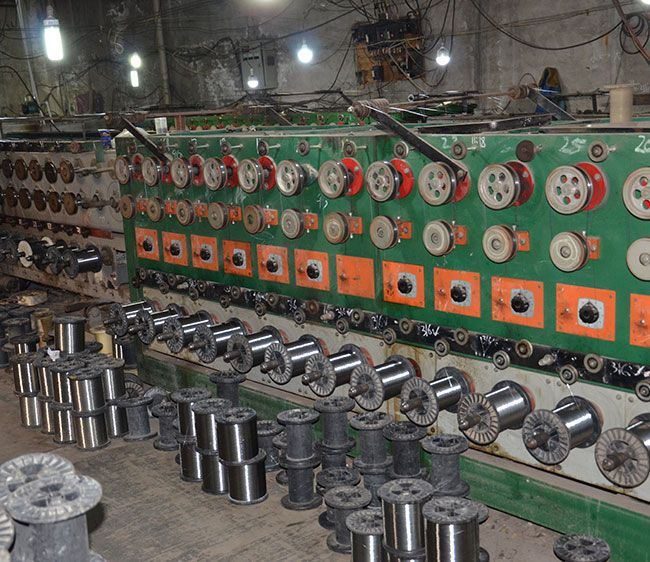

Material Production
01 /

Material Production

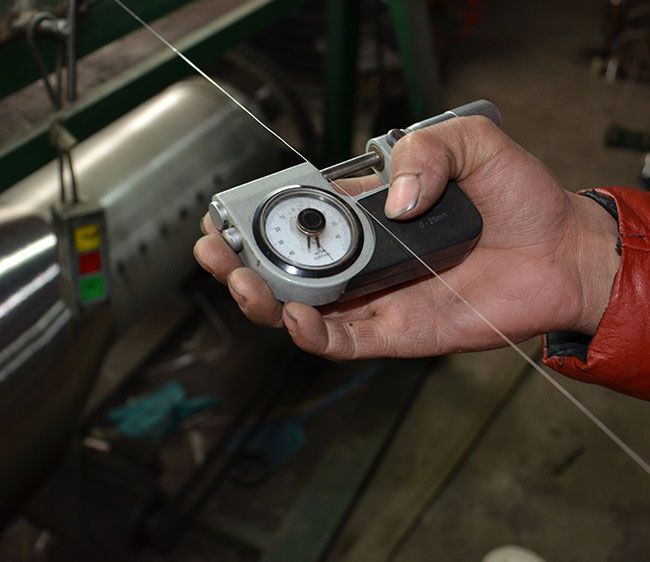

Diameter Inspect
02 /

Diameter Inspect

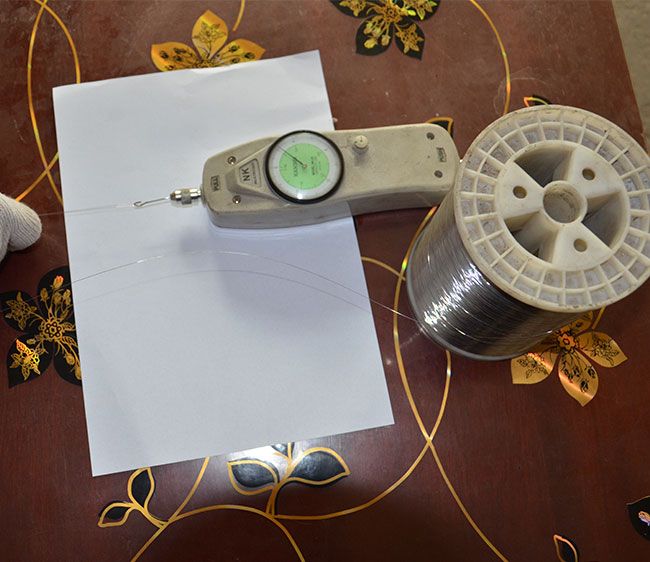

Tension Test
03 /

Tension Test

Material Check
04 /

Material Check

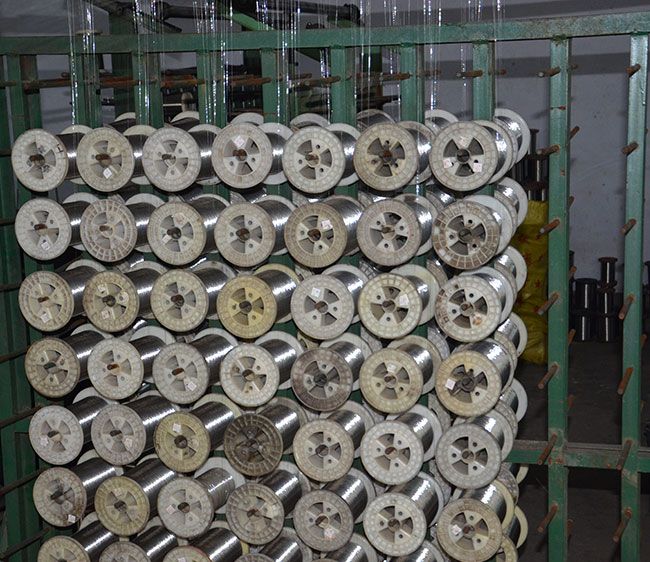

Wire Warping Beam
05 /

Wire Warping Beam

06 /

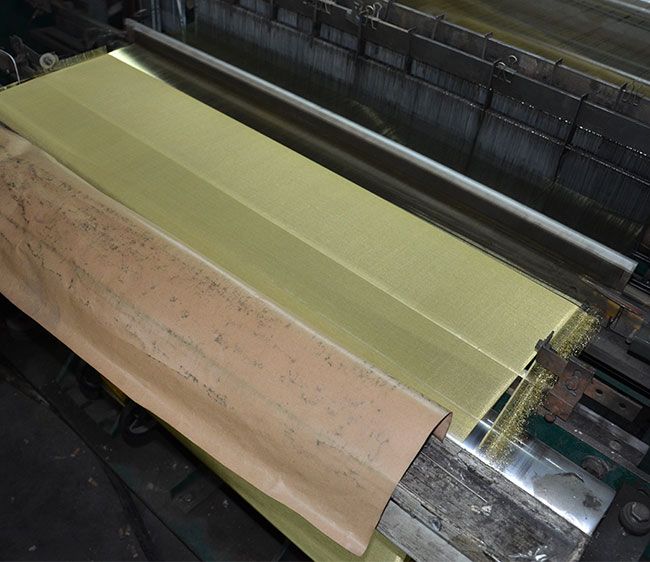

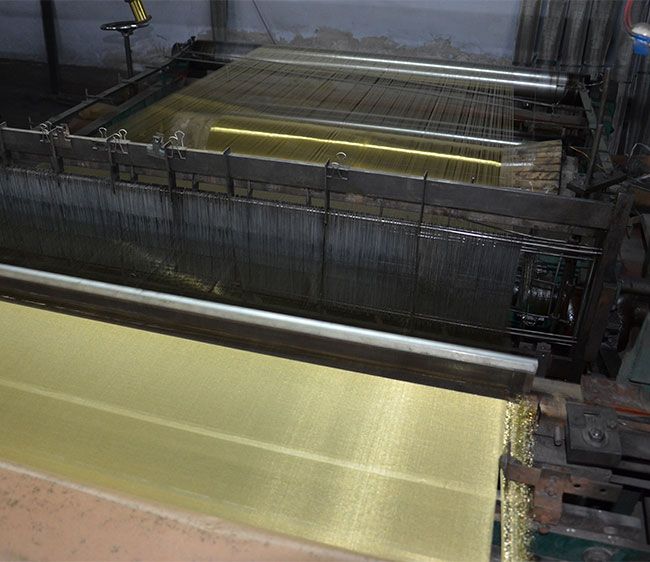

Weaving

Weaving
07 /

Mesh Inspect

Mesh Inspect
08 /

Hole Size Test-01

Hole Size Test-01
09 /

Hole Size Test-02

Hole Size Test-02
010 /

Length And Width Inspect

Length And Width Inspect
011 /

Trimming Edge

Trimming Edge

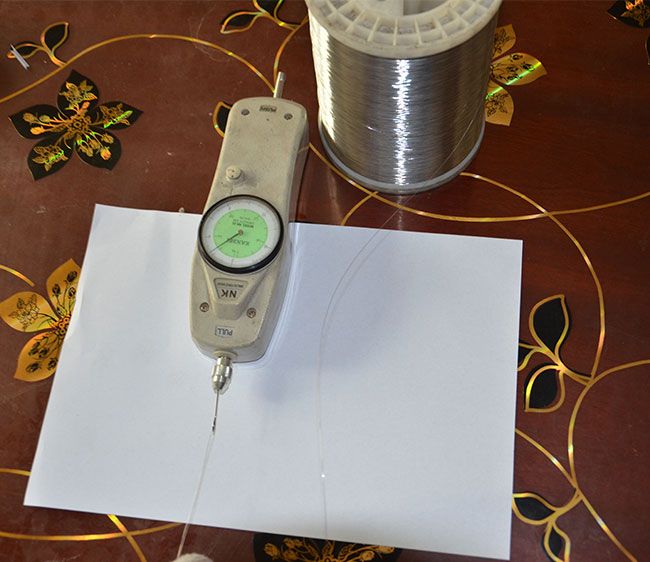

  • Intension Test
    Intension Test

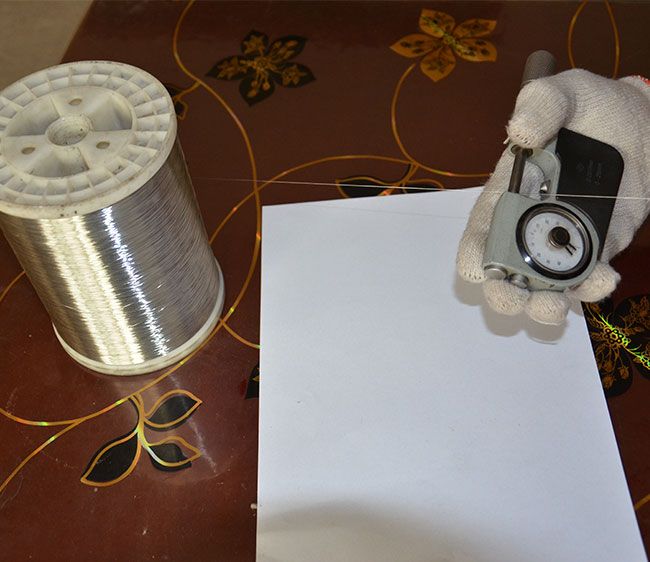

  • Diameter Inspect
    Diameter Inspect

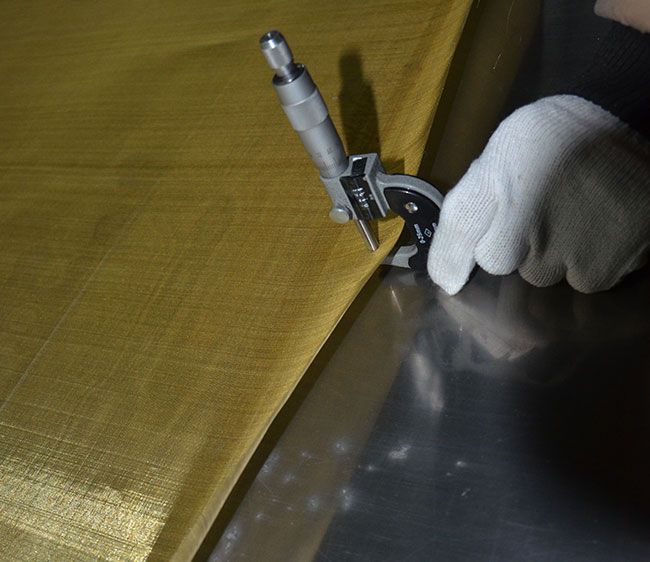

  • Thickness Inspect
    Thickness Inspect

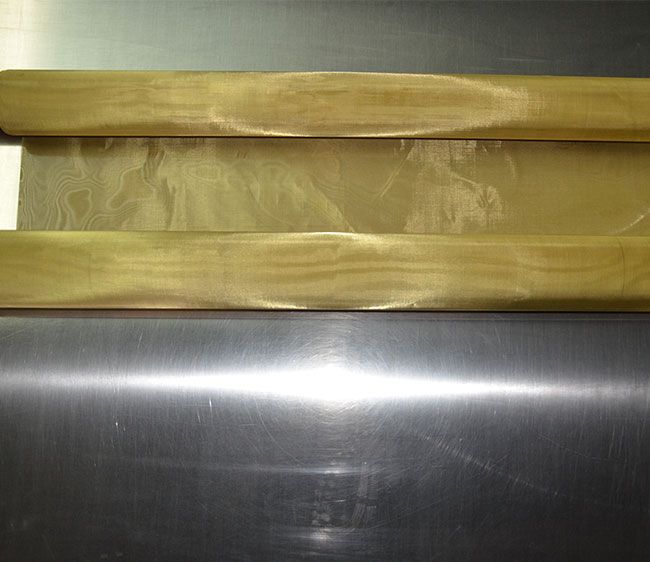

  • Role Size Inspect
    Role Size Inspect

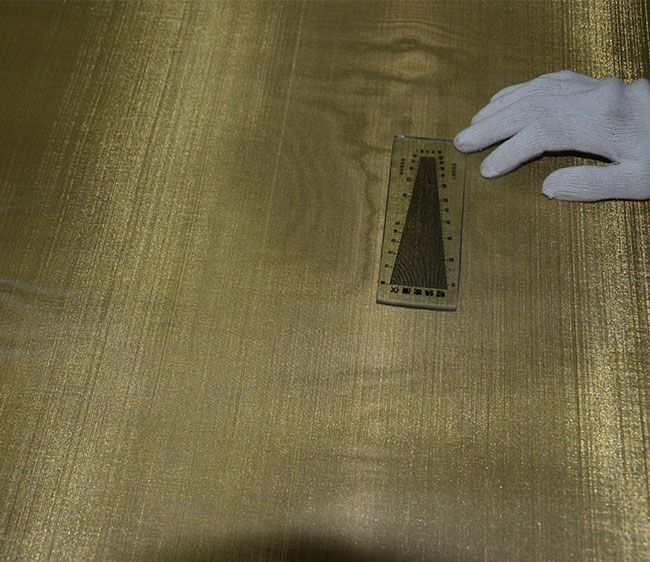

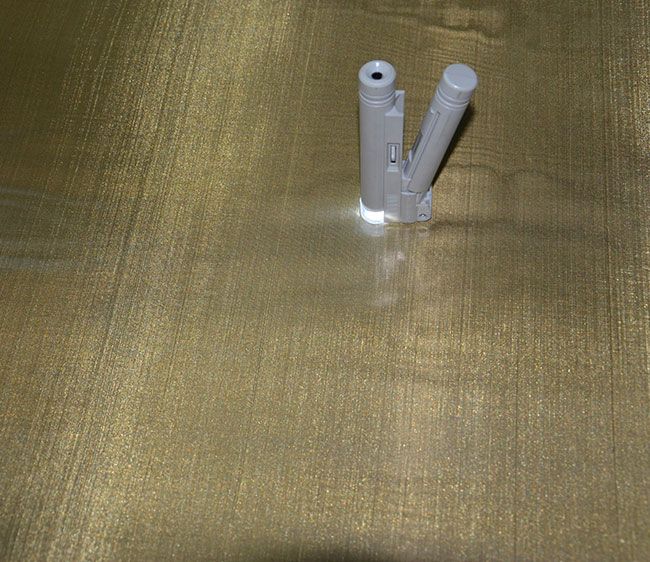

  • Mesh Size Test
    Mesh Size Test

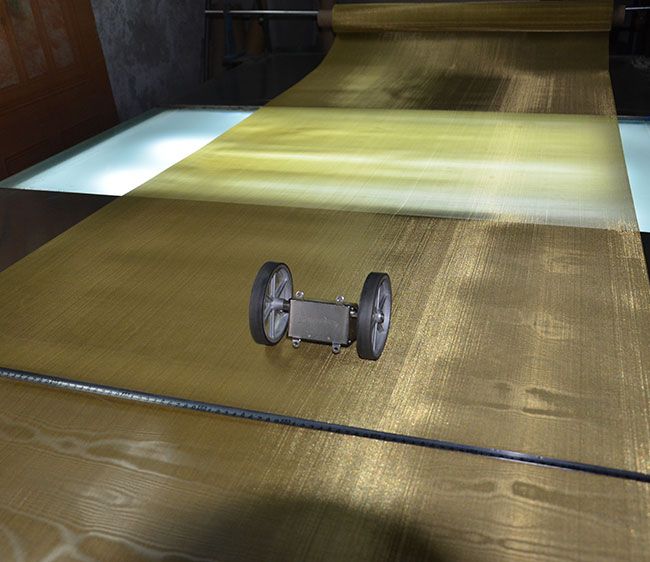

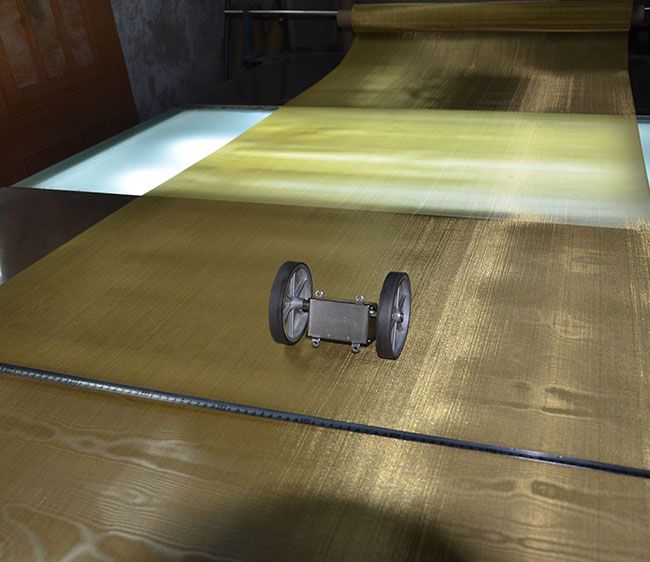

  • Length And Width Inspect
    Length And Width Inspect

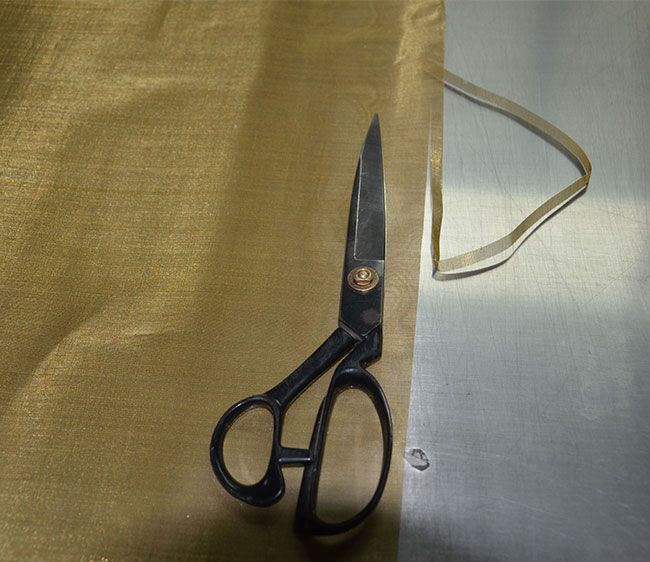

  • Trimming Edge
    Trimming Edge

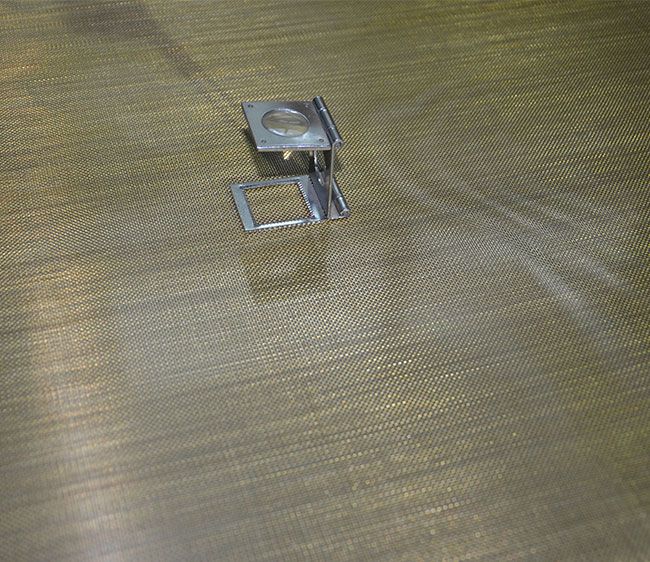

  • Mesh Inspect
    Mesh Inspect
With the most perfect way to protect your cargo security

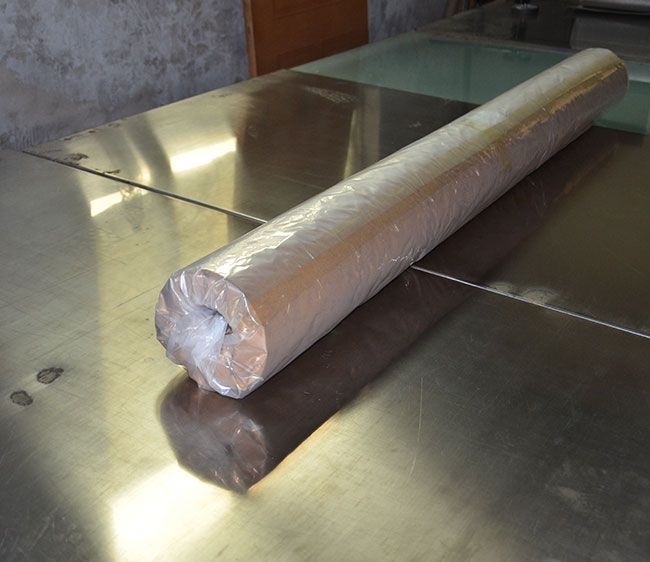

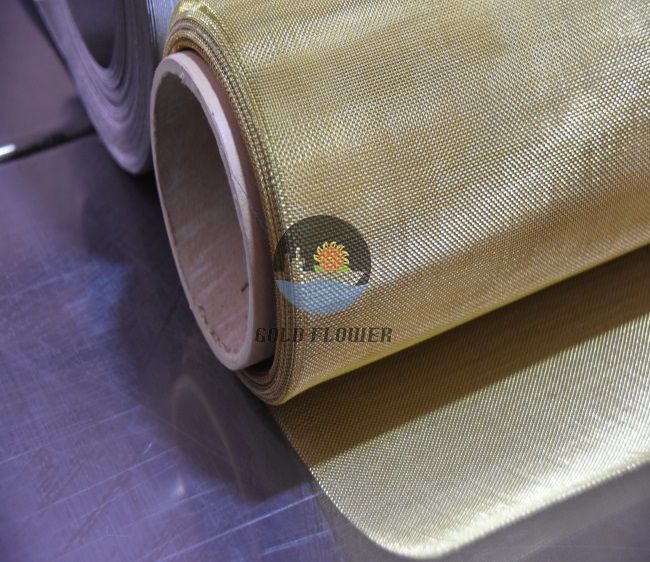

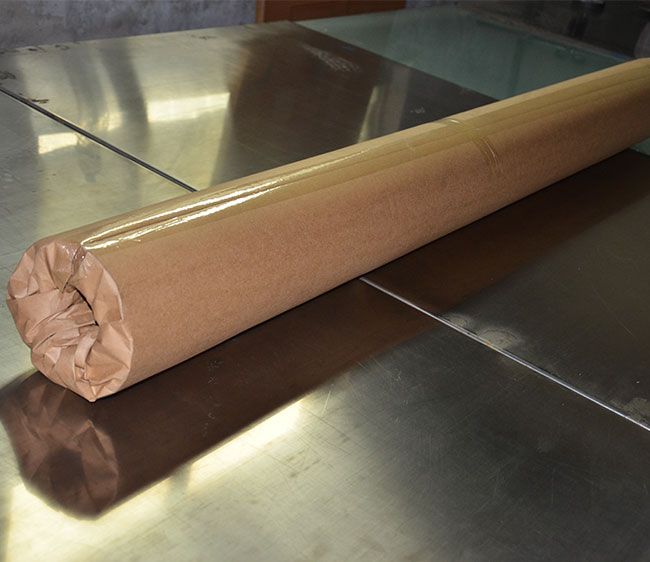

  • 001 Cardboard Tube
    001 Cardboard Tube
  • 002 Thick Paper Board
    002 Thick Paper Board
  • 003 Thick Plastic Cloth
    003 Thick Plastic Cloth
  • 004 Perfect Wooden Case
    004 Perfect Wooden Case

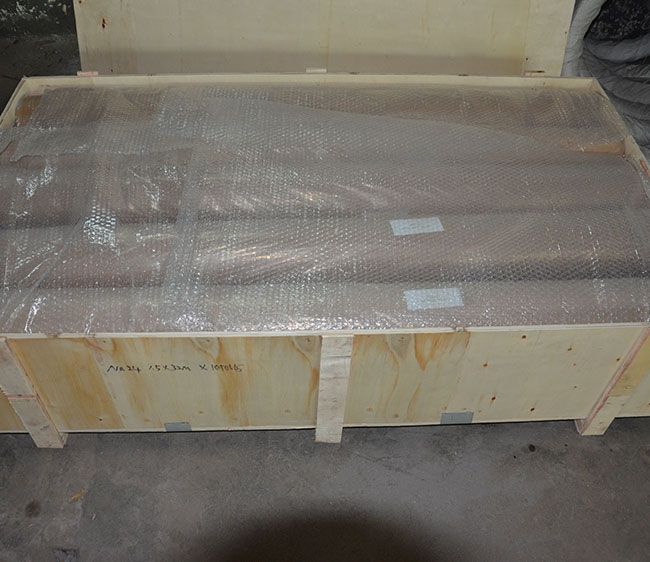

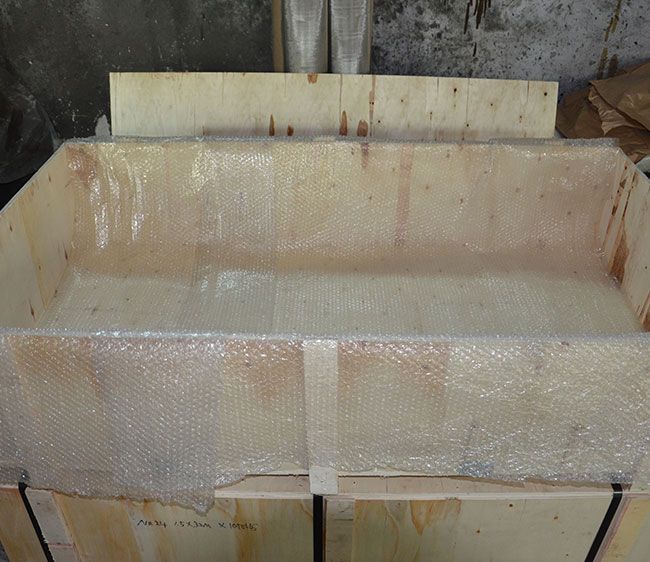

  • 005 Thick Plastic Bubble Film
    005 Thick Plastic Bubble Film
  • 006 Excellent Cover
    006 Excellent Cover

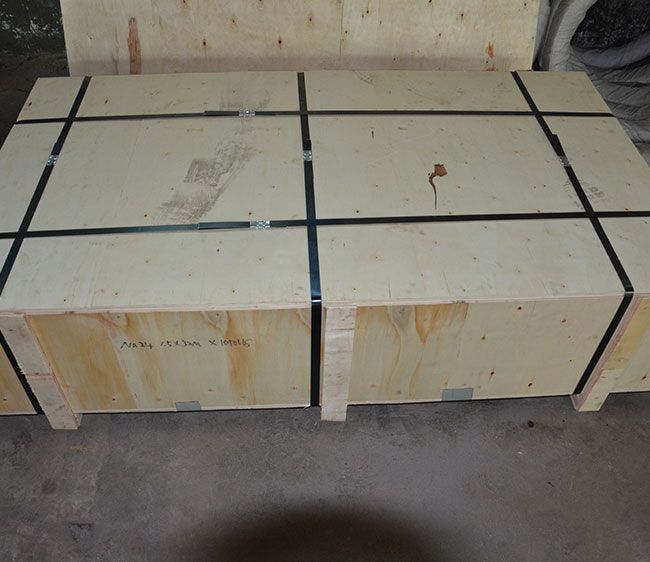

  • 007 Steel Strap Fix
    007 Steel Strap Fix
  • 008 Package Check
    008 Package Check

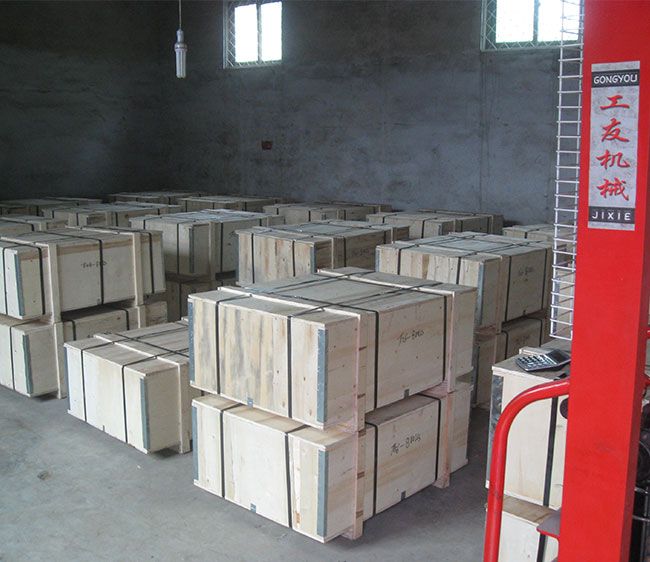

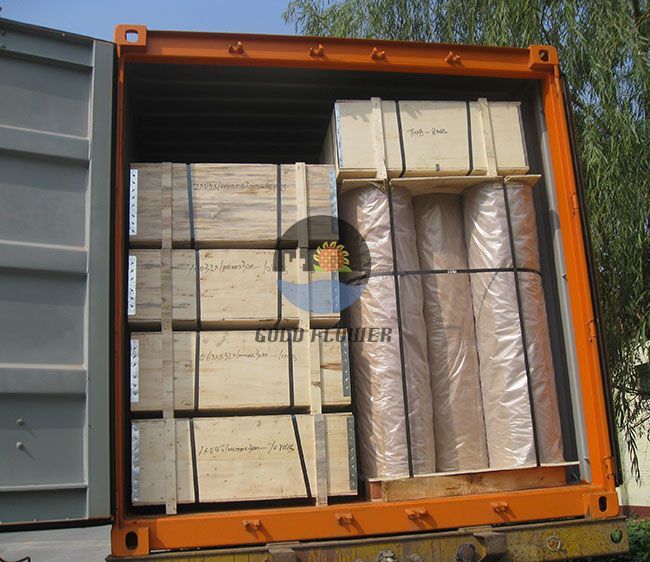

  • 009 Container Transport
    009 Container Transport
