Filtering Mesh Packs

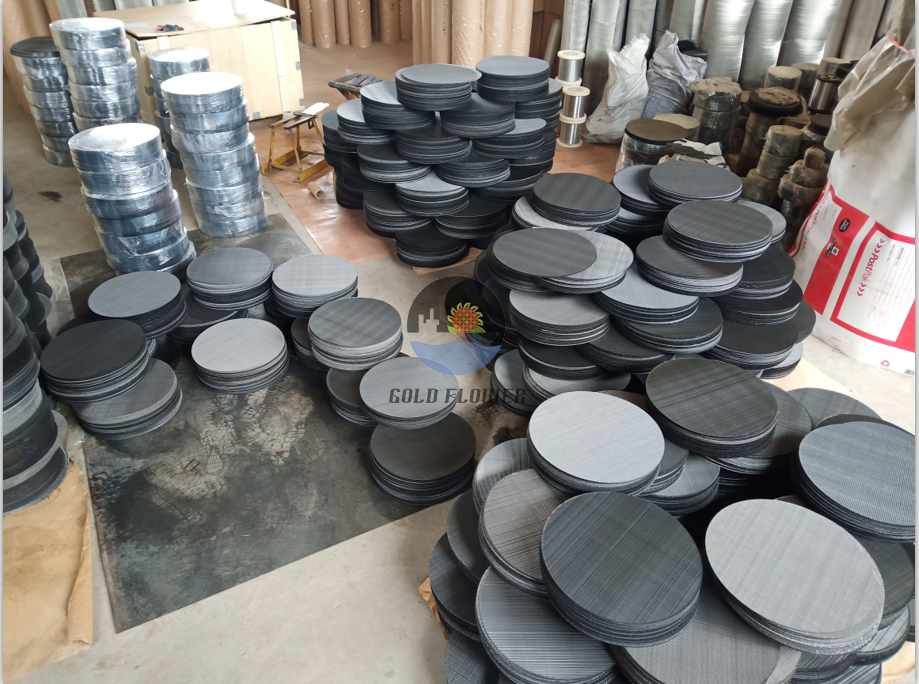

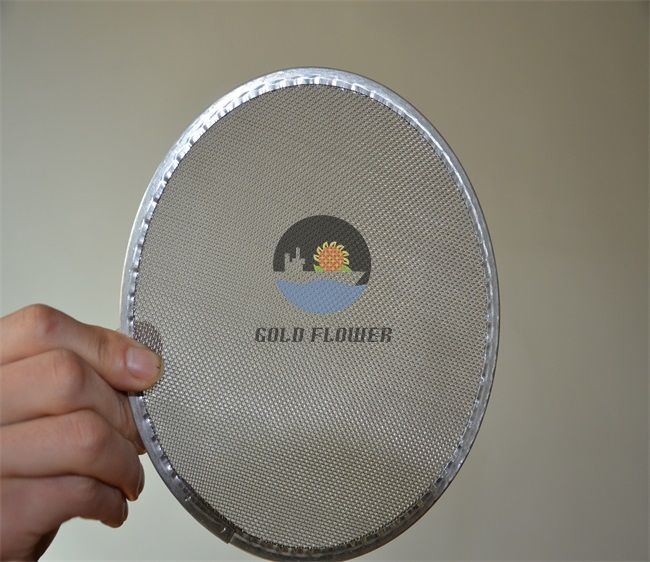

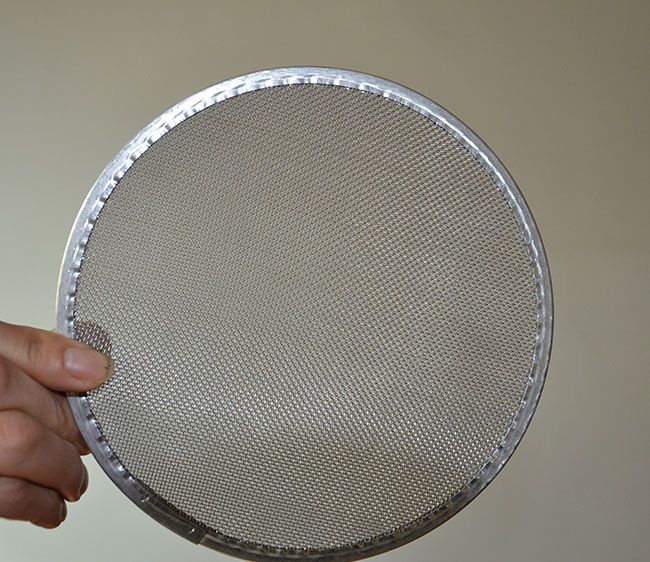

1.  Product name:filter piece.

2  Material: stainless steel Aisi316,316L,304L,304,black wire.

3. Form: circle,square and etc.

4. Size: 75mm,133mm,170mm,230mm,255mm,302mm,or with inquiry.

5. Use: for filter and etc.


Product name:

filter disc,filter piece,filter.

Characteristics:

a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.

Plain weave:

Each warp wire and each weft wire passes over and under the next adjacent wire.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

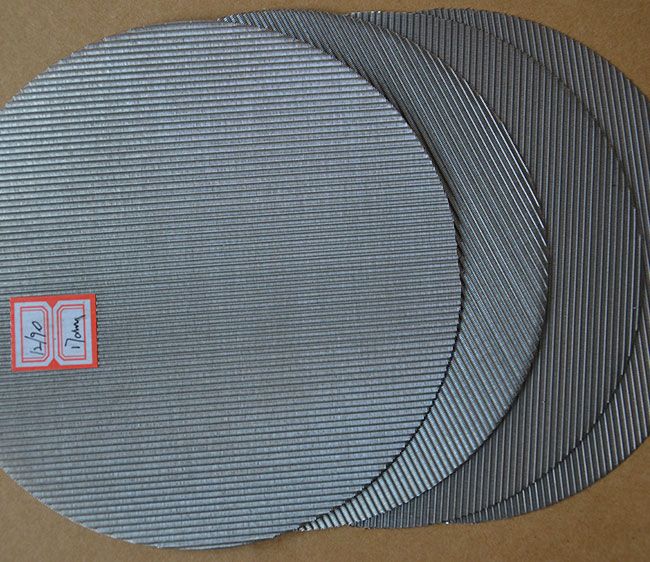

Twill dutch weave

It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.

Reverse dutch weave woven wire cloth

Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.





Filter disc shape:

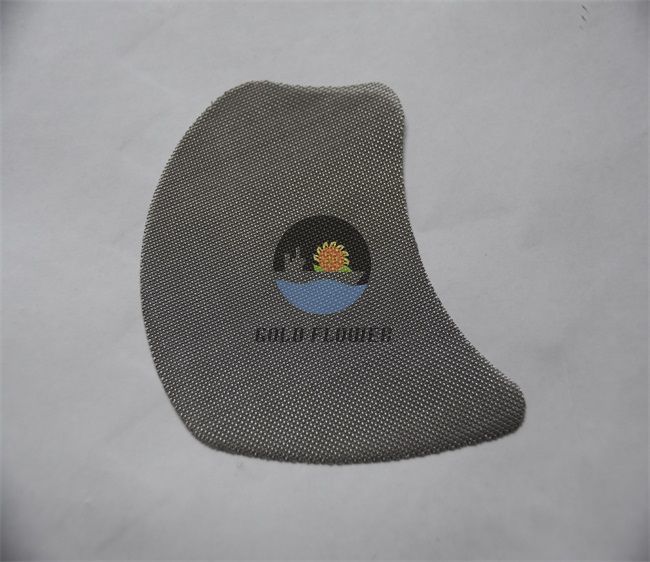

Rectangle, Square, Round, oval, circular, cap, waist and abnormity etc.

Woven type:

Plain wave,twill weave and dutch weave.

Structure:

Single layer, double layer and multi-layers.

Edge material:

Stainless Steel Sheet, copper sheet, galvanized sheet, aluminum sheet, low carbon iron sheet, rubber and plastic etc.

Application: suitable for distillation, absorption and evaporation in petroleum, oil refining, chemical industry, light industry, medicine, metallurgy, machinery, ship, automobile and tractor industries.Filter and other processes to eliminate entrainment in the steam or gas droplets and foam, as well as the car tractor used as an air filter.


  • Plain dutch weave
  • Twilled dutch weave
  • Reverse dutch waeve 1
  • Reverse dutch weave 2
  • Five-heddle weave
Material Production
01 /

Material Production

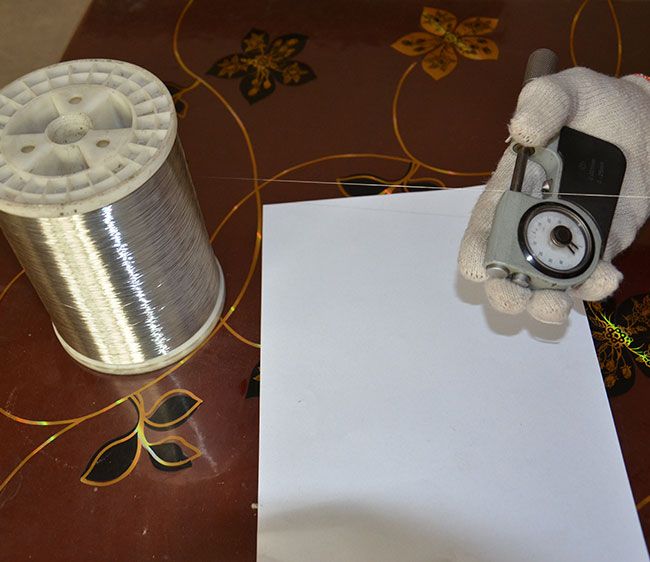

Diameter Inspect
02 /

Diameter Inspect

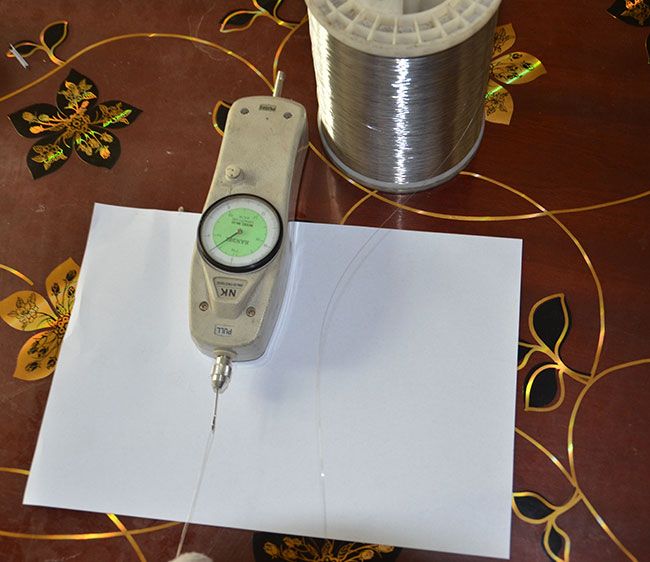

Tension Test
03 /

Tension Test

Material Check
04 /

Material Check

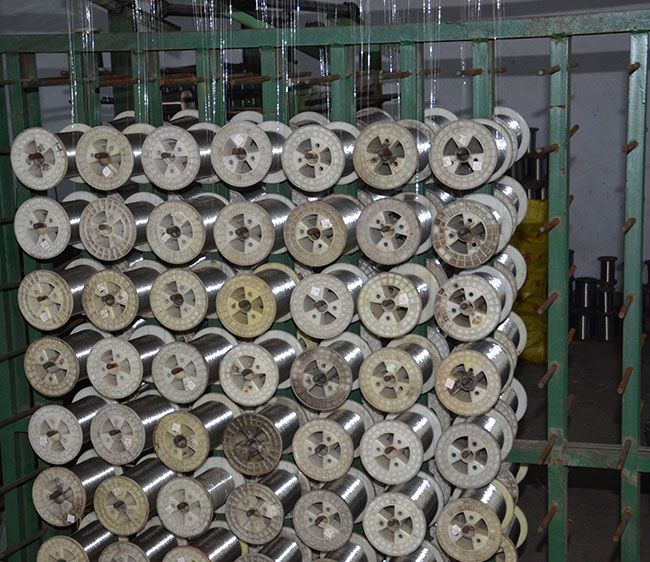

Wire-Warping-Beam
05 /

Wire-Warping-Beam

06 /

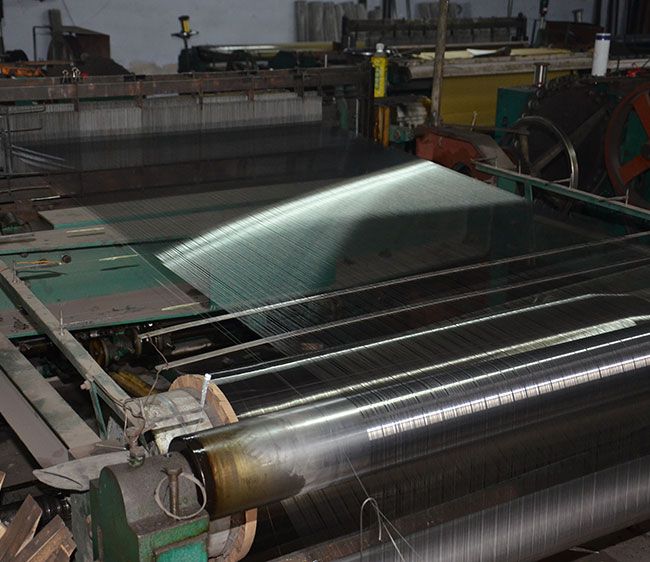

Weaving

Weaving
07 /

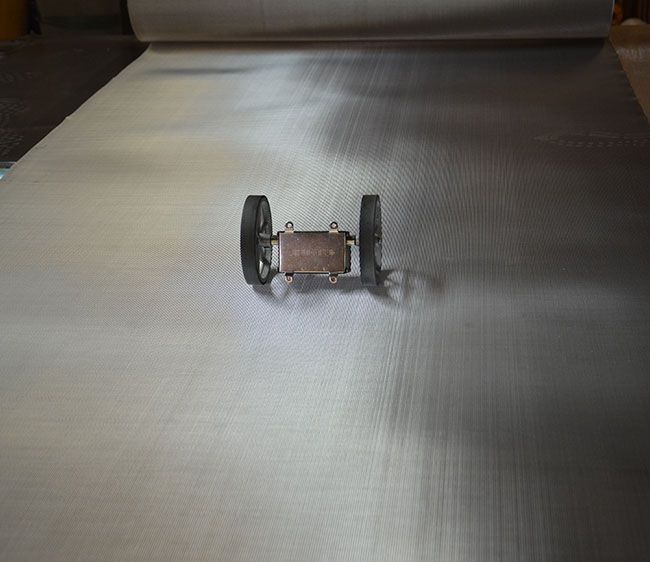

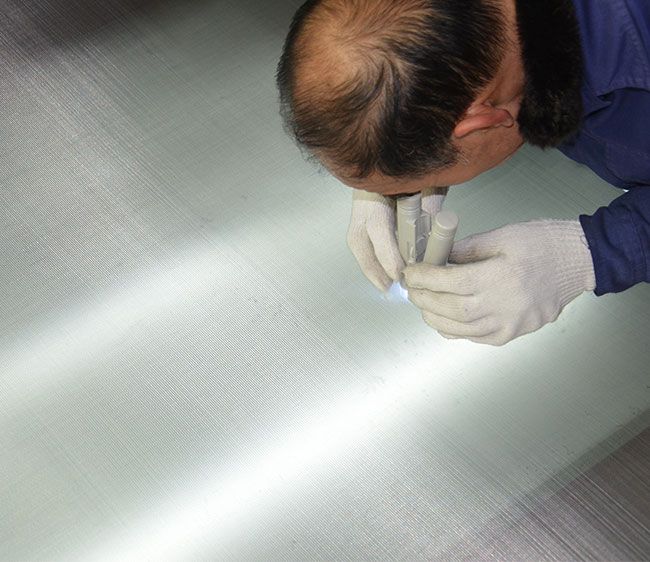

Mesh Inspect

Mesh Inspect
08 /

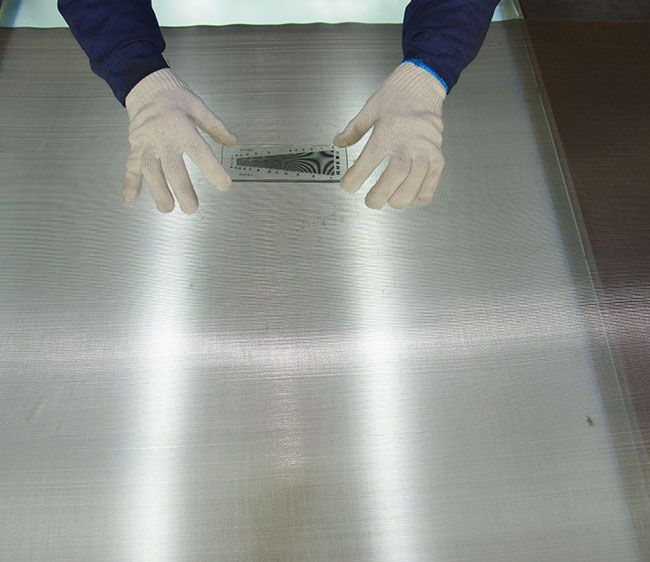

Hole Size Test

Hole Size Test
09 /

Length And Width Inspect

Length And Width Inspect
010 /

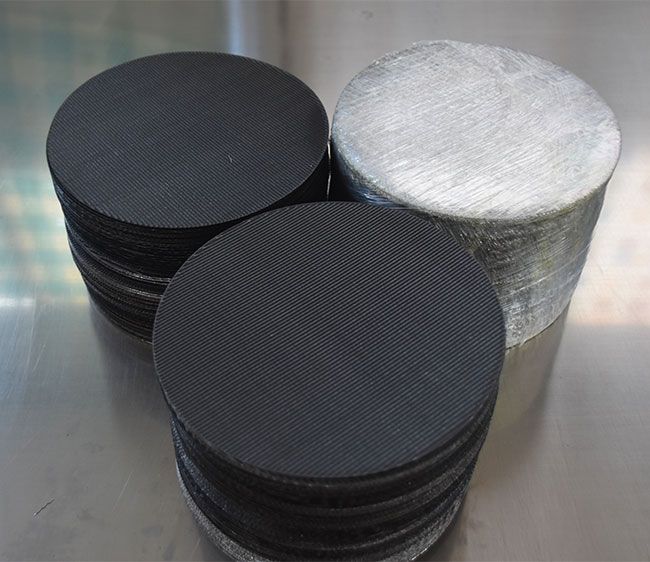

Steel Pieces

Steel Pieces
011 /

Black Pieces

Black Pieces
  • Intension test
  • Diameter Inspect
  • Thickness Inspect
  • Role size Inspect
  • Mesh Test
  • Length and Width Check
  • Trimming Edge
  • Mesh Inspect
With the most perfect way to protect your cargo security
  • 001 Checking Piece
    001 Checking Piece

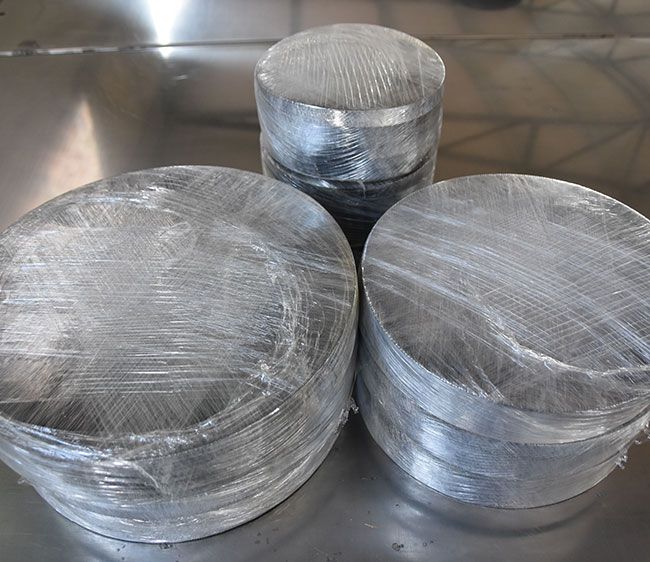

  • 002 Sucure Film
    002 Sucure Film

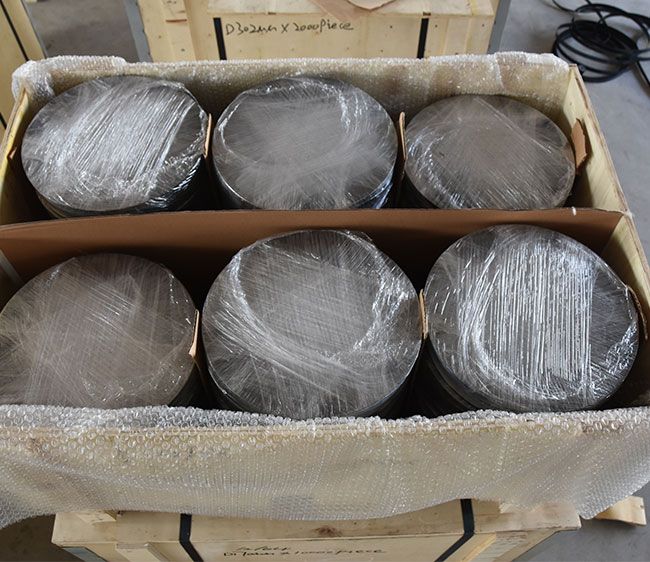

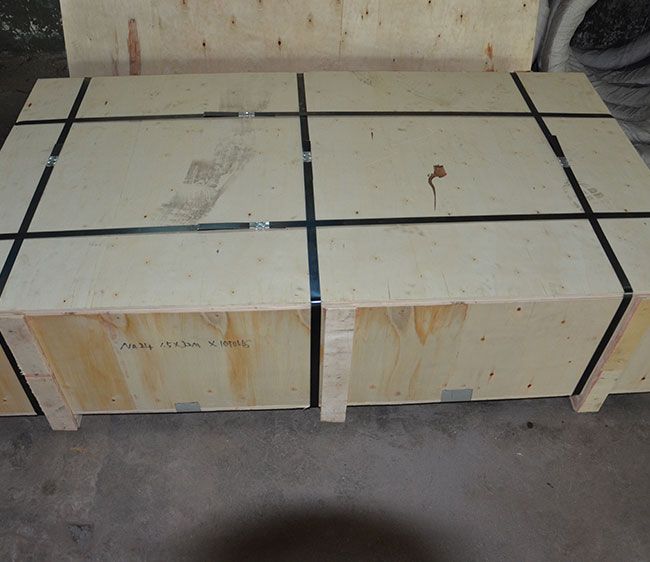

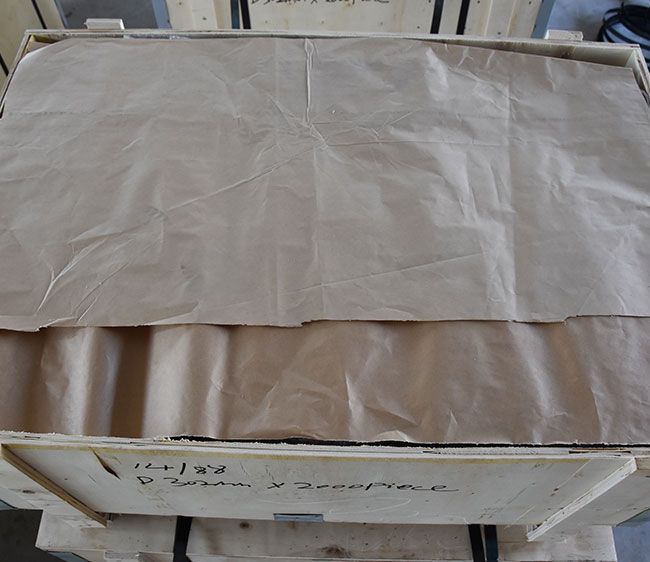

  • 003 Firm Wooden Box
    003 Firm Wooden Box
  • 004 Thick Plastic Bubble Film
    004 Thick Plastic Bubble Film
  • 005 Excelent Cover
    005 Excelent Cover
  • 006 Steel Strap Fix
    006 Steel Strap Fix
  • 007 Package Check
    007 Package Check

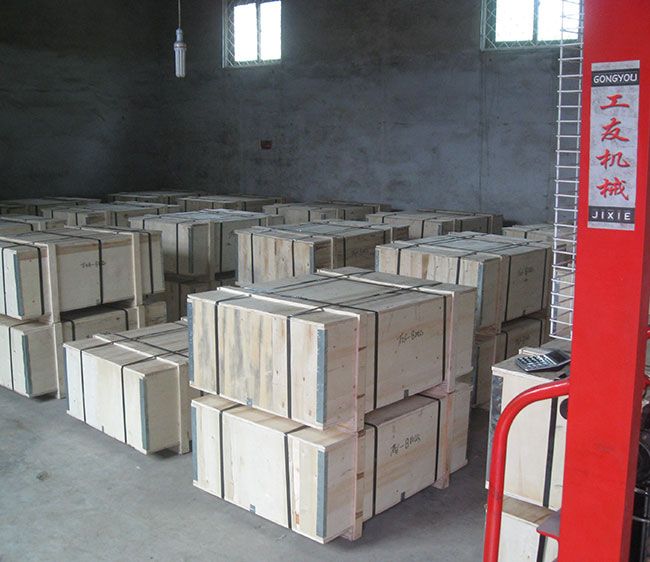

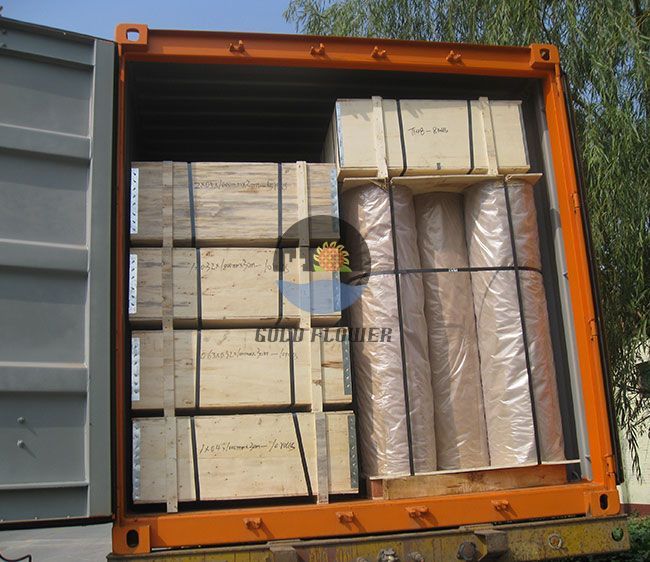

  • 008 Container Transpor
    008 Container Transpor
